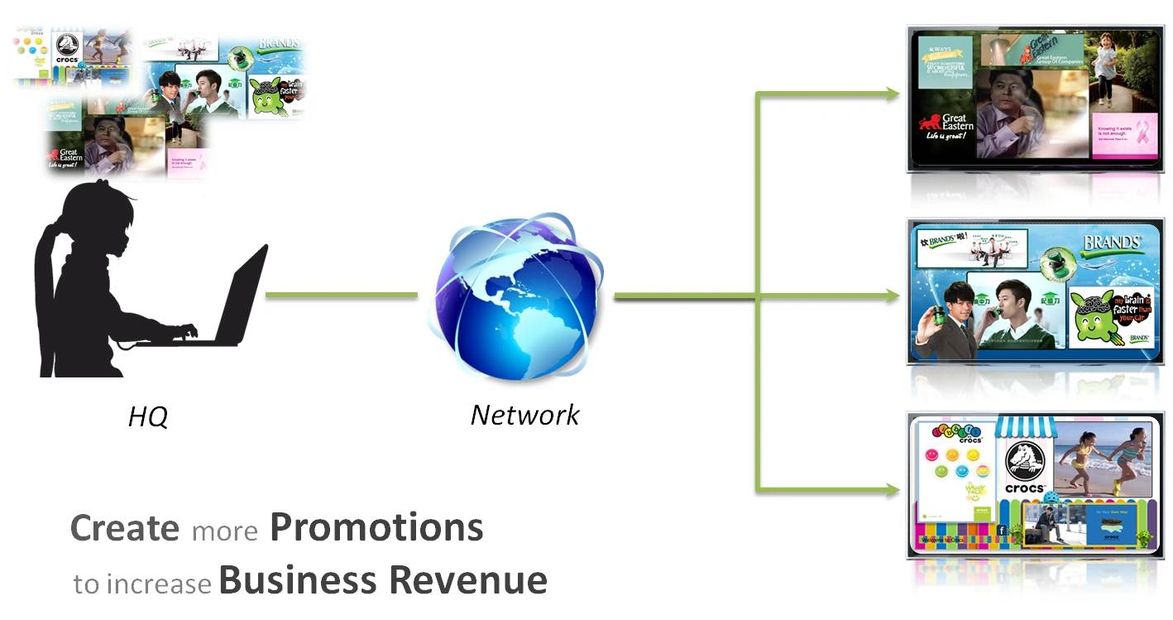

Manage the data in HQ, instantly update contents and schedule over your network

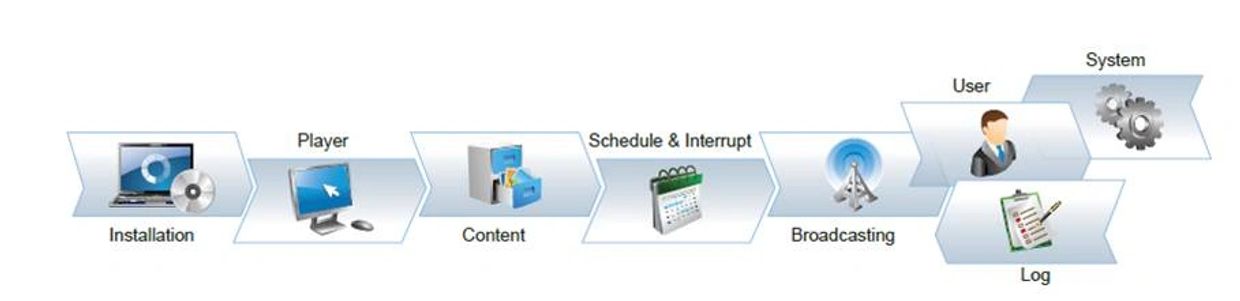

Intuitive Interface and effortless workflow, easy-to-use

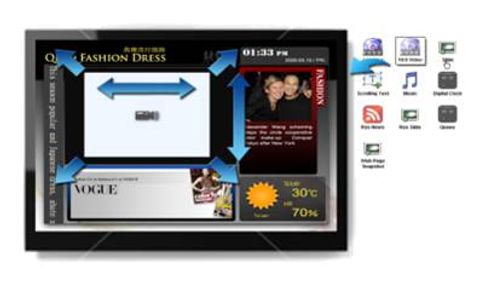

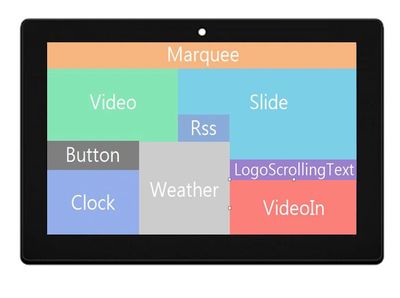

Broad range of content editing and delivery functions
Powerful performance /management system design
Specification
CPU
Rockchip RK3288, quad-core Cortex-A17, GPU Mail-T764
RAM
DDR3 2G default/4G (upgradable)
Internal Storage
EMMC 8GB default/16G or 32G (upgradable), supports NAND FLASH.
Network Support
> With RJ45 port, supports 10/100/1000M Ethernet.
> Built-in Wifi&BT module, supports Wi-Fi 802.11b/g/n (ac upgradable), BT4.0.
Image rotation
Digital signage monitor supports 0°, 90°, 180°, 270° manual / automatic rotation and gravity sensing.
Interface Devices
> USB interface camera supports up to 800W pixels.
> USB Host x2, extended USB Host x3, USB OTGx1, IO ports x3.
> Extended 3 serial ports supports for external devices connected to the module
(NFC module, printer, card reader, etc.)
> TF card, supports up to 32GB
> HDMI 2.0 output.
Operation System
Google Android 6.1
System Management
> Supports OTA remote upgrade, disk upgrade
> Open root privileges
> Customizable local or remote server management system.
> Supports multiple serial devices, USB devices, IO control devices
design
Desk bracket/ VESA Mount
