Electronic Self Labels (ESL)

Features:

Labels in future


Electronic Self Labels(ESL) uses E ink screen, it can display product name, price tag, product code, promotion and etc. It is future solution for  Self-service store, retail shop.

Convenience


Easily modify price and promotional activity, reducing maintenance cost and increase management efficiency

Technology


Our ESL are using 2.4G RF/BLE communication technology. Long range to update data, encrypted data and transmission, long working time.

Application

ESL by APPs

Using special APPs thru Bluetooth change ESL,  is good for signal store solution.

ESL By Cloud Management

Thru Gateway/Base Station change ESL,   good for retailer system integration.

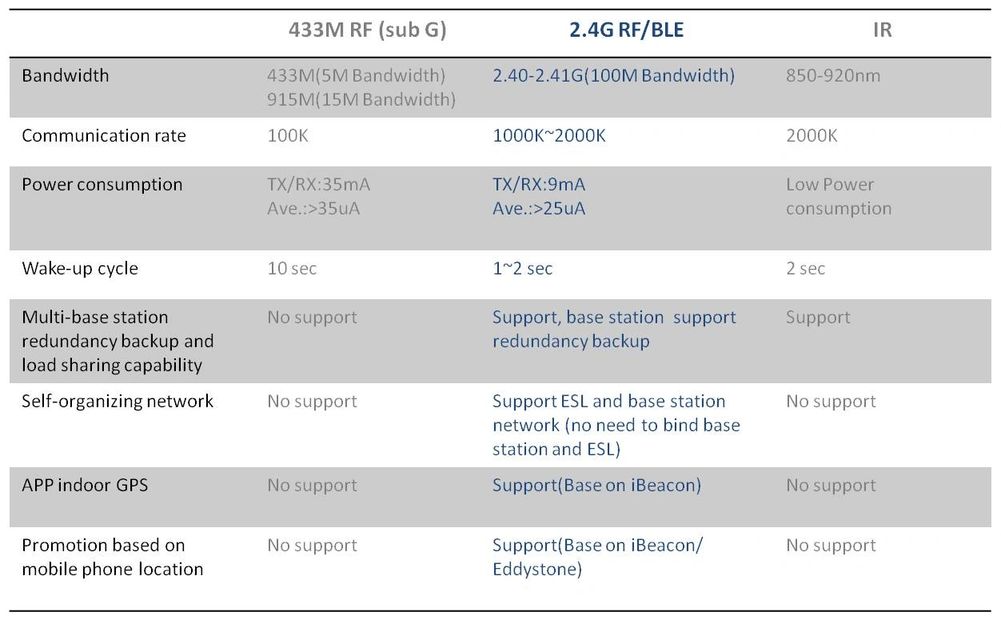

ESL Communication Technology Compare Sheet


ESL Product List

ESL 2.13"-Black/White


E-ink size:2.13 inch

Resolution:: 212*104

Dimension: 74.0x40.0x12.0mm

ESL 2.9"-Black/White


E-ink size:2.9 inch

Resolution: :296*128

Dimension:93.0x44.0x12.3mm

ESL 4.2"-Black/White


E-ink size:4.2 inch

Resolution:400*300

Dimension:103.0x92.0x8.0mm

ESL 2.13"-Black/White/Red


E-ink size:2.13 inch

Resolution:: 212*104

Dimension: 74.0x40.0x12.0mm

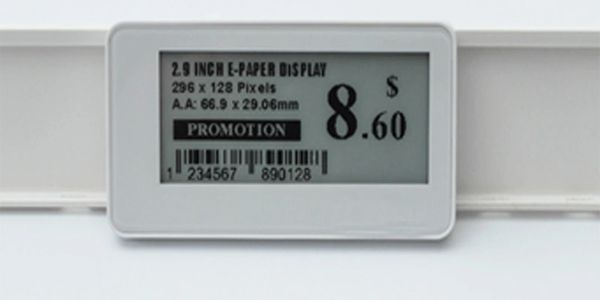

ESL 2.9"-Black/White/Red


E-ink size:2.9 inch

Resolution: :296*128

Dimension:93.0x44.0x12.3mm

ESL 4.2"-Black/White/Red


E-ink size:4.2 inch

Resolution:400*300

Dimension:103.0x92.0x8.0mm

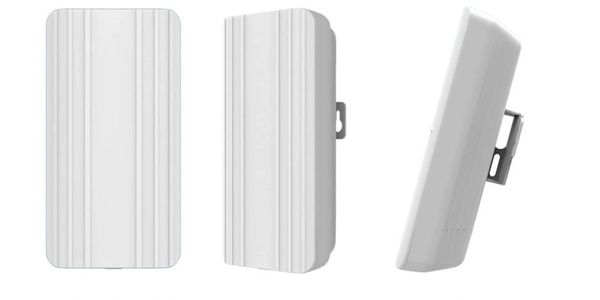

Access Point (AP) Gateway


Special Features

  • Water proof-IP54/Sun proof (Industry only)
  • Bluetooth 5.0 Long distance Feature (Industry only)
  • Bluetooth distance: > 200 meters in open space
  • Open protocol: HTTPS/MQTT to cloud
  • Bi-directional: read advertisement data and sends command(update parameters from cloud)
  • Configuration: Web protal
  • Transmit: ETH/Wifi/Wifi-hpping or usb extend(3G/4G module)
  • Power: 5V DC and ETH PoE(802.3af)
  • Base on latest OpenWrt 18.29
  • Bluetooth chip: TI CC2640R2F

Customized Available
